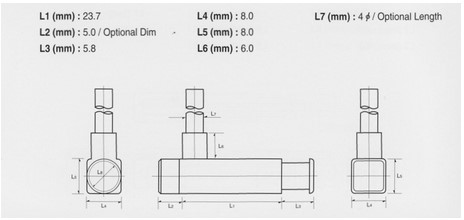

NS-80CHK

Piezo igniters are known for being compact, simple and cost-effective. In a small casing or frame, they are designed for mechanical ignition of gas-fired equipment without  foreign electrical source.

As NAM SUNG igniters are crafted with special piezo ceramic moulded in plastic or epoxy resin, our products offer advantages such as high durability and high electrical output, as well as smooth operation and high tolerance of extreme conditions.

Features :

• Excellent durability
• Light anti-dust type
• Hight output
• Soft operation
• Easy mountability

Recommended use :

• Stationary gas range and stove
• Portable gas range and stove
• Stationary gas lighter
• Gas boiler
• Others

Characteristics :

• Output min : 13kV
• Spark Gap: 5mm for distinct spark
• Capacitance: minimum 20pF/1khz
• Insulation resistance: minimum 1MΩ / DC 1KV
• Durability : 30,000 cycles / minumum output 12kV
• Heat Resistance: 100°C 24Hrs / output drop ratio maximum 10%
• Humidity Resistance: 60% 60°C 3Hrs / output drop ratio maximum 20%
• Operation Power: maximum 2.5kg
• Pull out force of lead wire : minimum 4kg
